FP3-225
Pump Model FP3-225
Note: FM Approved applies only to pumps used in stationary applications
Pump Specifications
- Flow rate: 681-1136 l/min (180-300 gpm)
- Rotor: Herringbone
- Maximum differential pressure: 21 bar
- Drivers: PTO, hydraulic, engine, electric or water turbine
- Ports: Groove or flange
- UL and FM applies to all except the hydraulic system
Fire Lion Global model FP3-225 are available in packaged systems designed for common applications or customized to include a variety of specified drivers, controls, gauges, valves, piping, etc. for plug and play installations. Our engineers are exceptionally knowledgeable of foam applications and are eager to help you solve your foam pumping issues.

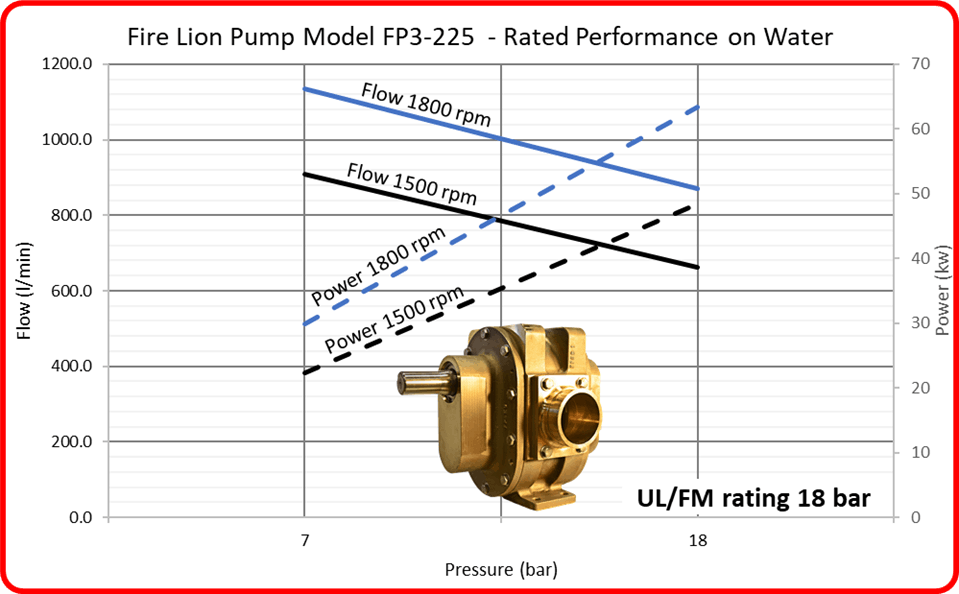

Pump Curve
Applications
Product Documentation
Product Document |
Document Type |
|---|---|
| UL/FM Curve | |
| Pump Assembly Groove | |
| Pump Assembly Flange | |
| Bracket Assembly for Mobile Pumps Only | |
| 2 Year Replacement Parts |
